Pro Mill Stop 16-000

UPC:
030955068343
Availability:
Usually ships in 24 hours
$49.99
(3 reviews)
Current Stock:
Adding to cart… The item has been added

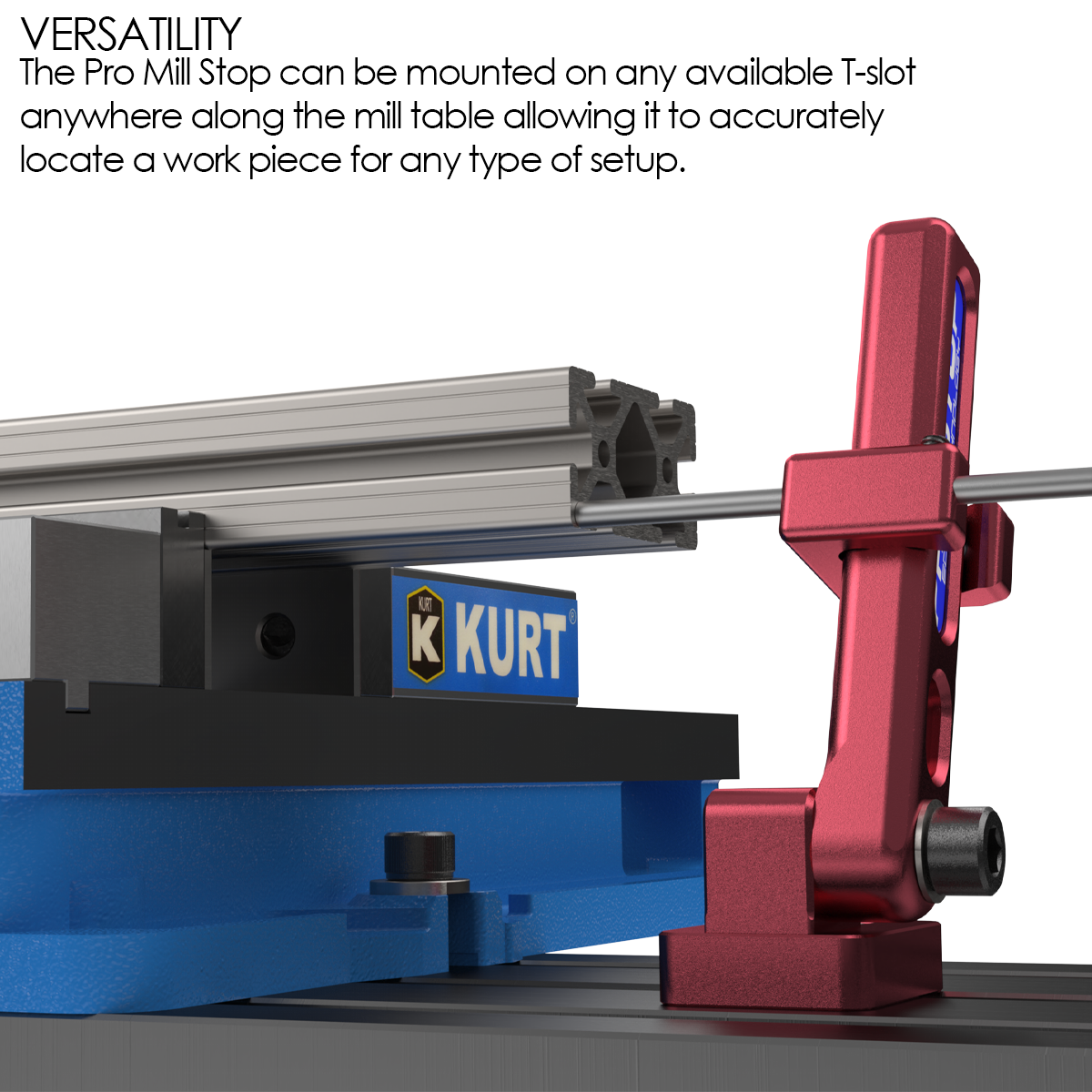

The Pro Mill Stop by Edge Technology can be mounted on any available T-slot anywhere along the milling machine table allowing it to accurately locate a workpiece for any type of setup. It is designed to keep the stop rod square to the work piece throughout the entire range of motion. This configuration provides a more consistent locating surface for increase part accuracy. The base of the unit is also keyed to the T-slot of table for increased consistency. After locating the workpiece the arm of the Pro Mill Stop can be rotated out of the way for total cutter clearance. The arm can then be accurately repositioned for repeat setup.

  • Versatile design allows the 1/4" hardened stop rod to be quickly and accurately positioned.
  • Stop rod stays parallel to the milling machine table so workpiece will contact rod face squarely for increased accuracy.

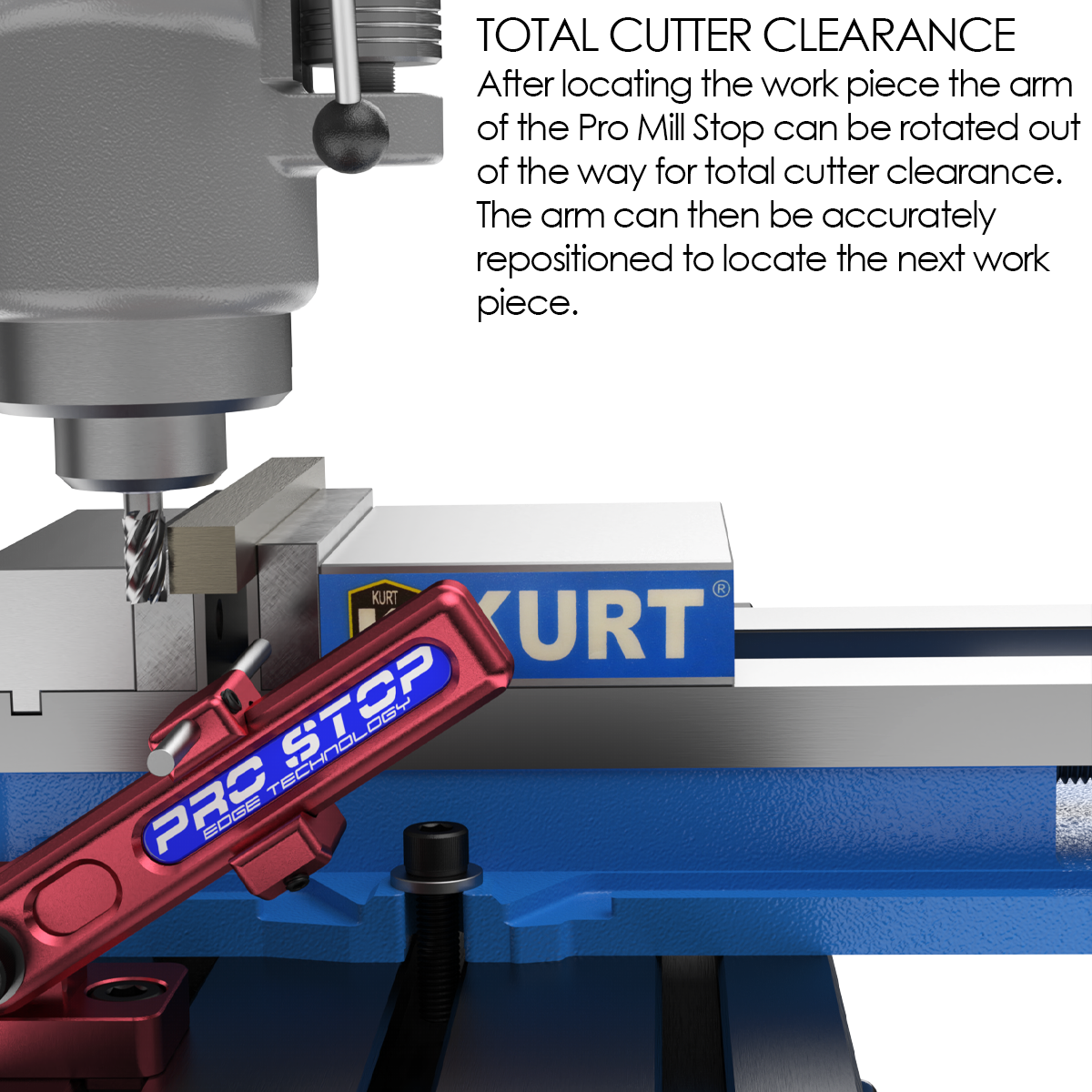

  • Lever arm can be rotated out of the way for cutter clearance and accurately relocated for repeat setup. (loosening and retightening of screw is required)
  • Large 1/2"-13 bolt used to rigidly attach lever arm to base.
  • Non-marring 1/4"-20 nylon tip set screw used to secure stop rod mount without damage to lever arm.
  • Non-marring 1/4"-20 flat point set screw used to secure stop rod without damage.
  • Base is keyed with table T-slot to keep unit square to work piece.
  • Sized to fit 5/8" T-slot. T-nut included.
  • Protected by one or more US patents.

The Pro Mill Stop 16-000 by Edge Technology can be mounted on any available T-slot anywhere along the milling machine table allowing it to accurately locate a workpiece for any type of setup.. milling machine mill tool machinist vise kurt bridgeport

The Pro Mill Stop 16-000 by Edge Technology can be mounted on any available T-slot anywhere along the milling machine table allowing it to accurately locate a workpiece for any type of setup.. milling machine mill tool machinist vise kurt bridgeport

The Pro Mill Stop 16-000 by Edge Technology can be mounted on any available T-slot anywhere along the milling machine table allowing it to accurately locate a workpiece for any type of setup.. milling machine mill tool machinist vise kurt bridgeport

Reviews

  • 5
    Awesome products

    Posted by Gerald Andrejcak on 21st Feb 2021

    Product is absolutely amazing in function and design . I will be buying alot more of their products in the near future

  • 5
    Works Great

    Posted by Billy on 9th Dec 2019

    Use it on occasion to replicate cuts on the mill.

  • 5
    Great Product!!!!!

    Posted by Ray Mosley, Jr. on 7th Dec 2018

    Many, if not most machinists, make their own mill stops. Including myself. So, for me to spend money on this product, you can rest assured that it is worth it! The Pro Mill Stop is well built, precise, and attractive as well. I will definitely recommend the Pro Mill Stop to all of my fellow machinists.
